- Functional Description
- Specifications

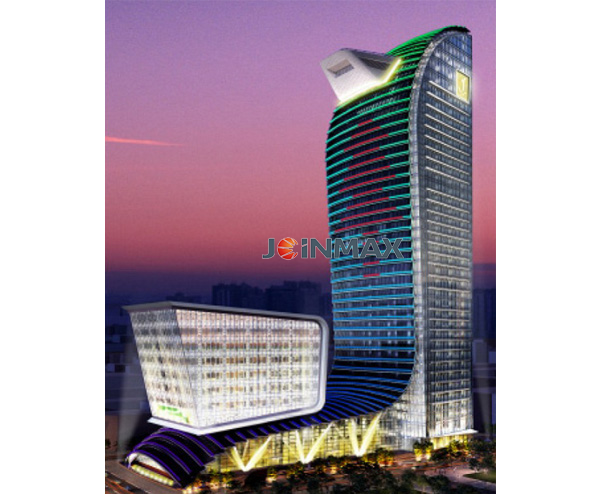

- Applications

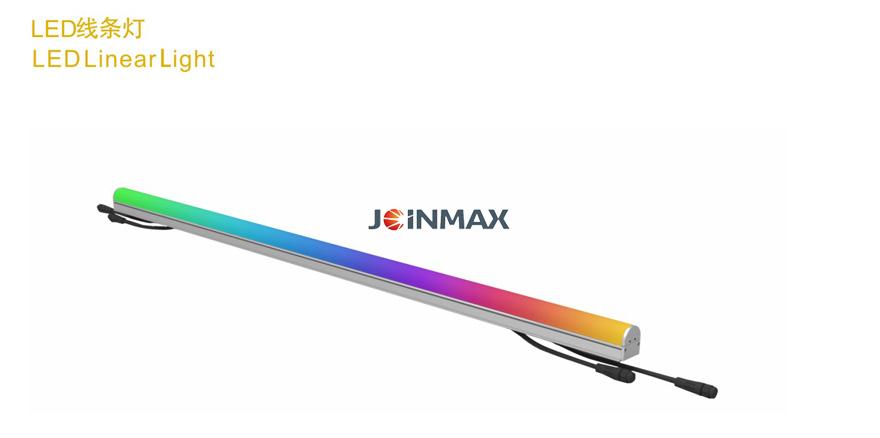

1、Using Nichia SMD 3 in1 LED lamps as light source. The light is transmission with PC diffuser to allow 140 degree beam angle. Good color effect even in short distance.
2、DC36V input voltage, each power line can power 20 meter light.
3、Aluminum housing and PC diffused cover, the bracket match with facade.
4、IP66 protection rating, suitable for indoor and outdoor environment.

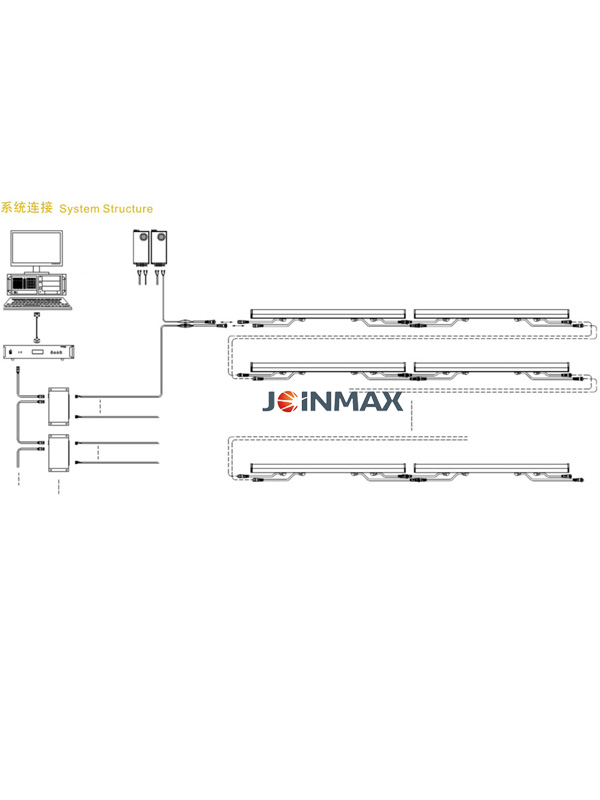

5、Remote drive and DMX control, with online address encoding.
6、Up to 8 pixels per meter, suitable for large-scale display.
7、The light can be designed as any length, and match with the facade.
技術分類 Technical Classification | 項目規格 Item | 參數 Parameter |
電氣性能 Electrical Properties | 供電電壓 Input Voltage | DC36V |
最大功耗 Power Consumption | 12W/m | |
光學性能 Optical Properties ? | 光源組成 LED Composition | 96pcs Nichia 3 in1 SMD LED 96粒 日亞三合一貼片LED |
圖元間距 Pixel Pitch | 125mm | |
顯示圖元 Pixels | 8 pixels per meter 8像素/米 | |
光色 Colors | Full color?? 紅，綠，藍 | |
光束角 Beam Angle | 140° | |
亮度等級 Brightness Grade | 256 grade per color?? 每種顏色256級 | |
控制方式 Control Mode | 控制界面 Control interface | DMX512 |
控制系統 Control System | Joinmax Control System Joinmax控制系統 | |

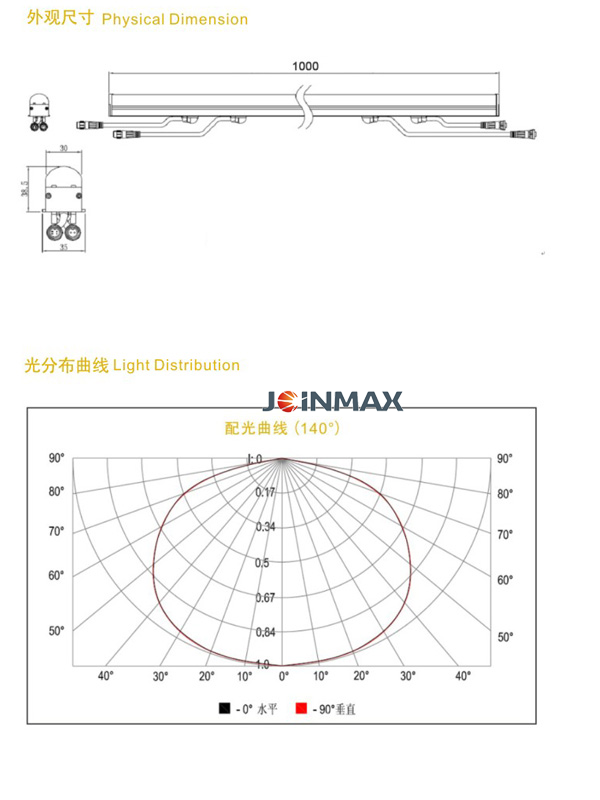

結構性能 Structure | 尺寸(長x寬x高) Dimension | 1000X30X38.5（mm） |
重量 Weight | 0.75Kg | |
燈體材料 Material | Aluminum housing and PC diffuser, 鋁型材+PC 罩 | |
表面顏色 Surface color | Aluminum color? 鋁原色 | |
燈具連接 Connection | Signal and Power connector 信號和電源防水接頭 | |
防護等級 Protection Rating | IP66 | |
工作溫度 Work Temperature | -30℃～50℃ | |
工作濕度 Work Humidity | 0～95%RH | |
最大級聯數 Connection Qty | Power to 20 meter? 電力最大級聯20米 | |
使用環境 Work Environment | Dry and Wet 干燥，潮濕 | |
安全性能 Safety | 認證Certificate | CE，CCC |
-
