- Functional Description
- Specifications
- Applications

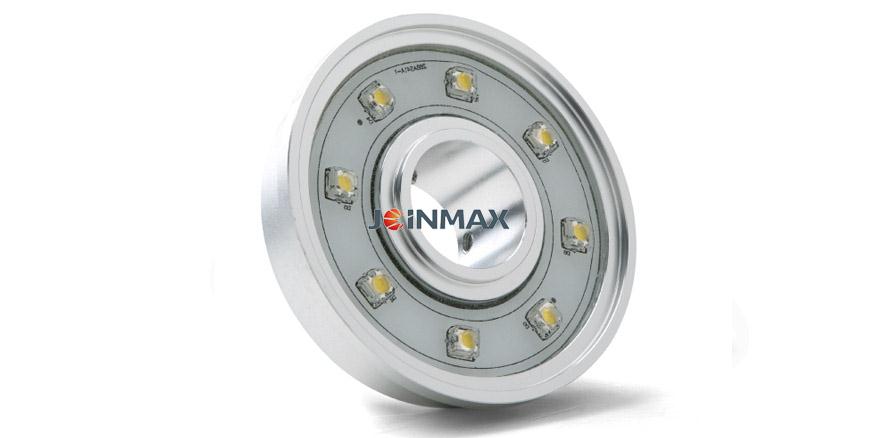

? ?This specialized design is fountain light lamp with 0.5 W light source, 1 WLED large power ,R,G,B,Y,W as well as RGB full color changing effect available, resistant to acid, alkali and UV,? which fully demonstrate the abundant color of LED. Suitable for large tourist center, park fountain, artificial waterfall, dam, aquarium and so on. Many color available and flexible design and? application with warm white, nature white, cold white and full color for customers to choose based on their needs.
技術分類Technical?Classification | 項目規格Item | 參數Parameter |
電氣性能Electrical?Properties | 供電電壓Input?voltage | DC24V |
最大功耗Max.power?consumption | 4.8W | |
光學性能Optical?Properties | 光源組成LED?composition | 8顆美人魚LED? 8?pcs?of???LED?lamps |
光色LED?Color | 紅色/綠色/藍色/黃色/白色/RGB?Red/Green/Blue/Yellow/White/RGB | |
光通量 luminous?flux | 150?lm | |
光束角?Beam?Angle | 15°/30°/45° | |
亮度等級Brightness?Grade | 每種顏色256?級?256?grade?per?color | |
光通維持率luminous?maintenance?rate | 50000?hour | |
控制方式Control?Mode | 控制接口Interface | DMX512 |
控制系統Control?System | 中鳴科技Easyplay5.0?(Joinmax) | |
結構性能Structure | 尺寸(長x寬x高)?Dimension?(L*W*H) | ?100XH35（mm） |
重量Weight | 0.41Kg | |
燈體材料Material | 壓鑄鋁型燈體，陽極氧化噴砂表面處理die-casting?aluminum?alloy | |
表面顏色Surface?Color | 銀色?Silver | |
燈具連接Connection | 電源線：2X0.5mm?橡膠線?Power?cable:2X0.5mm?rubber?cable? | |
防護等級Protection?Rating | IP68 | |
工作溫度Work?Temperature | -20℃～50℃ | |
使用環境Work?Environment | 干燥/潮濕dry/humid | |
安全性能Safety | 電器安全等級 Insulation? | Class?III |
認證Certificate | CE，ROHS |
供電方式? Input?Voltage | 發光顏色?LED?Color | 產品編號?Model |
DC?24V | 紅色 Red | JZ05-300806-010 |
綠色 Green | JZ05-300805-010 | |
藍色 Blue | JZ05-300804-010 | |
黃色 Yellow | JZ05-300803-010 | |
白色 White | JZ05-300802-010 | |
RGB | JZ05-300801-010 |
-
