- Functional Description
- Specifications

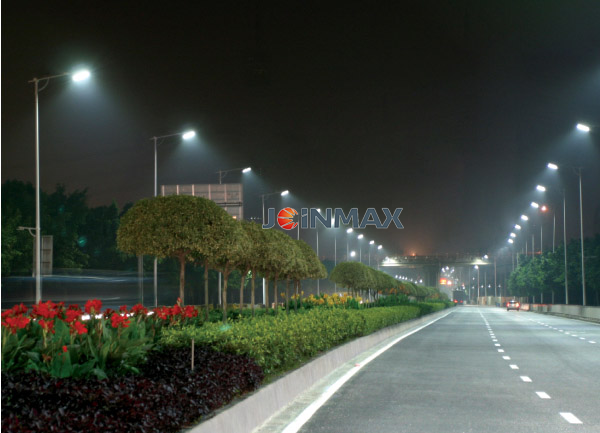

- Applications

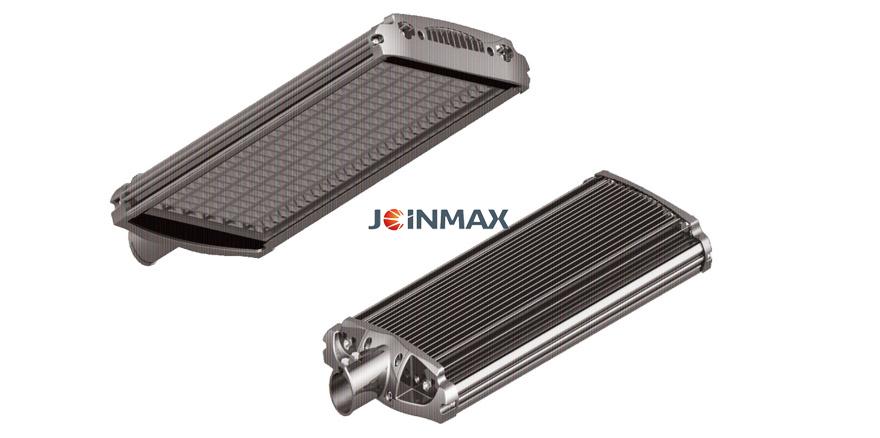

1.?????? Streamlined feature combined with LED structure characteristics, compact and simple with the beautiful l characteristics of traditional road lamps, for light use and scenic use both
2.?????? Excellent self-washing function to keep the lamp surface clean and good heat-dissipation effect to ensure the LED working-life
3.?????? Separated design of the light source and electric appliance with hood heat dissipation, easy installation and maintenance.
4.?????? Employ unique optic system design with excellent road lighting grading performance
5.?????? Long-working life power drive to ensure over 50,000 hours working life with multiple protection function like short circuit protection , open circuit protection ,overheated protection to synchronize with LED light.
??技術分類Technical?Classification | 項目規格 Item | 參數 Parameter |
電氣性能Electrical?Properties | 供電電壓Input?voltage | AC85-265V |
燈具功耗Power?consumption | 252W | |
光學性能 Optical?Properties | 光通量Luminous?flux | 25200lm |
光源色溫Color?temperature | 2700-6500K | |
顯色指數Color?rendering?index | CRI>70 | |
光效Light?Efficacy | 100?lm/W | |
光束角Beam?Angle | 60°X?120° | |
亮度等級Brightness?Grade | 2級 | |
2?levels | ||
光通維持率Luminous?Maintenance | 30000?hours(@70%) | |
控制方式?control?mode | 控制方式?control?mode | 上電長亮?electrify?light |

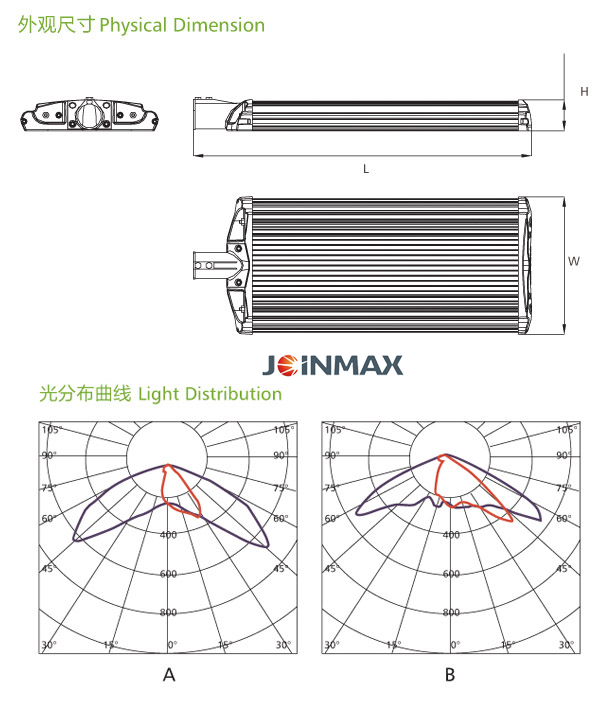

結構性能Structure | 長x寬x高Dimension(L*W*H) | 1035X349X79mm |
燈體重量Weight | 8.2Kg | |
燈體材料Material | 鋁Aluminium? | |
表面顏色Surface?Color | 灰色?Grey | |
燈具連接?Connection | 電纜連接?Cabel | |
工作溫度Work?Temperature | -30℃～50℃ | |
工作濕度Work?Humidity | 0～90% | |
最大級聯數?Max?cascade?connection?qty? | 任意?No?limit | |
使用環境Work?Environment | -20℃～40℃ | |
安全性能?Safety? | 防護等級Protective?Grade | IP65 |
供電方式?Input?Voltage | 發光顏色?LED?Color | 產品編號?Model |
AC85-265V | CREE?1W/顆?144顆163W CREE?1W/pcs?144pcs?163W 630x349x79mm | JZ15-314401-017 |
CREE?1W/顆?180顆203W CREE?1W/pcs?180pcs?203W 746x349x79mm | JZ15-318001-017 | |
CREE?1W/顆?216顆244W CREE?1W/pcs?216pcs?244W 900x349x79mm | JZ15-321601-017 | |
CREE?1W/顆?252顆285W CREE?1W/pcs?252pcs?285W 1035x349x79mm | JZ15-325201-017 | |
CREE?1.5W/顆?96顆163W CREE?1.5W/pcs?96pcs?163W 630x349x79mm | JZ15-309601-017 | |
CREE?1.5W/顆?120顆203W CREE?1.5W/pcs?120pcs?203W 746x349x79mm | JZ15-312001-017 | |
CREE?1.5W/顆?144顆244W CREE?1.5W/pcs?144pcs?244W 900x349x79mm | JZ15-314401-017 | |
CREE?1.5W/顆?168顆285W CREE?1.5W/pcs?168pcs?285W 1035x349x79mm | JZ15-316801-017 | |
CREE?2W/顆?72顆163W CREE?2W/pcs?72pcs?163W 630x349x79mm | JZ15-307201-017 | |
CREE?2W/顆?90顆203W CREE?2W/pcs?90pcs?203W 746x349x79mm | JZ15-309001-017 | |
CREE?2W/顆?108顆244W CREE?2W/pcs?108pcs?244W 900x349x79mm | JZ15-310801-017 | |
CREE?2W/顆?126顆285W CREE?2W/pcs?126pcs?285W 1035x349x79mm | JZ15-312601-017 |
-
