- Functional Description
- Specifications

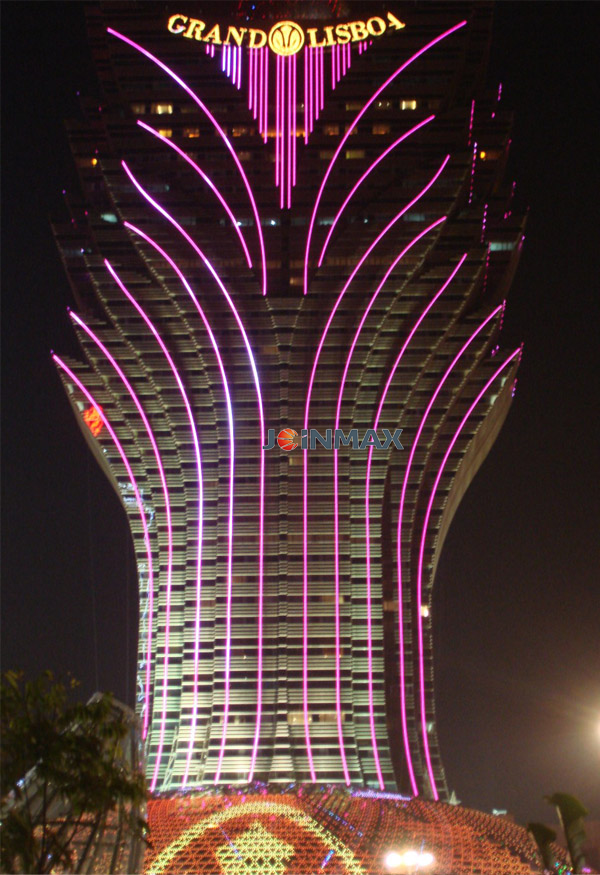

- Applications

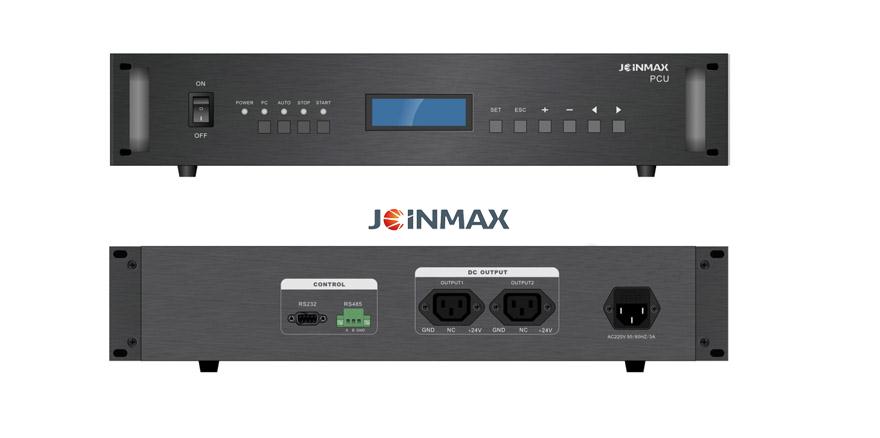

? ? Power control unit is designed for power control of the control system and lighting fixtures in the whole lighting system:
1.Can preset on/off timing settings;
2.Contains RS232 and RS485 interface, can connect with computer and control the power settings by program;
3.Manual switch control;
4.DC24V/2A output, level signal control power supply unit, can control power supply automatically.
Technical Specification | Item | Parameter |
Identification | Model | JM09-0811 |
Electrical Property | Input Voltage | AC100-240 V，50-60Hz |
Power Consumption | 50W | |
Signal Input ? | Digital Input Interface | RS-232/RS-485 |
Signal Output | Output Interface | DC24V/2A output voltage |
Function | Control Function | (1)? ?Timing switch (2)? ??Programming switch (3)? ??Manual switch |
Setting Function | (1)? ??Local time (2)? ??Timing setting | |

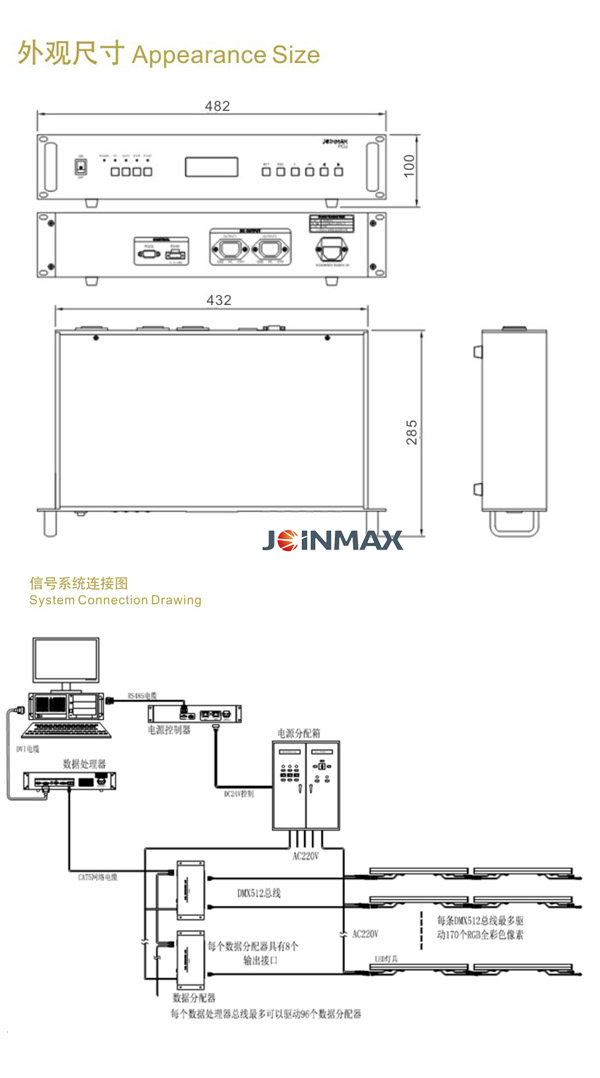

Physical Property ? ? | Size(L*W*H) | 482×285×100 mm |
Weight | 2.0Kg | |
Housing Material | Aluminum | |
Operating Temperature | 0℃～40℃ | |
Operating Humidity | 0～90% 不凝露 0～90% | |
?Safety | Operating Environment | Indoor |
Certificate | CE |
?Software | Operation Environment |
Operation System | Windows98/me/2000/NT/XP/2003 |
Power Control | Power Controller2.0 |
DPU Setting | DPUset2.0 |
Display Software | EasyPlayer4.0 or later versions |
System | Equipment? Name | Parameter |
Software | Operation System | Windows XP or Windows 7 |
Display Software | Power Controller2.0、DPUset2.0、EasyPlayer4.0 | |
Hardware | Main Control Computer | Industrial computer control, DVI display interface, DVD-ROM, Minimum of 1GB Hard drive space, 2GB RAM, Windows OS. |
Power Control Unit | JM09-0811， | |
數據處理器（DPU） | JM09-0210，DVI輸入接口，RJ45專用輸出接口 JM09-0210，DVI input interface, RJ45 output interface | |
數據分配器（DDU） | JM09-0335，RJ45專用輸入輸出接口，8路DMX512輸出 JM09-0335, RJ45 input and output interface, 8 x DMX512 output | |
電源分配箱 Power Distribution Box | 給燈具和控制設備提供AC220V電源 Supplies AC220V for the lighting fixtures and control system | |
LED燈具 | 具有和數據分配器相同接口的LED燈具 Same data interface with LED light fixture |
-
